Raspberry pi car platform
This project in its current form is a raspberry pi zero based wifi car platform. Although this platform can be expanded into futher projects involving autonomus operation, image recognition this platform currently can be used as a simple keyboard operated car connected over WiFi.
Parts
- Raspberry Pi Zero
- 4 Motor Chasis like this LINK
- Motor Driver LINK
- 2x18650 cells with holder
- Assorted mounting headers
- Wifi dongle (not Req in case of Rpi0 W)

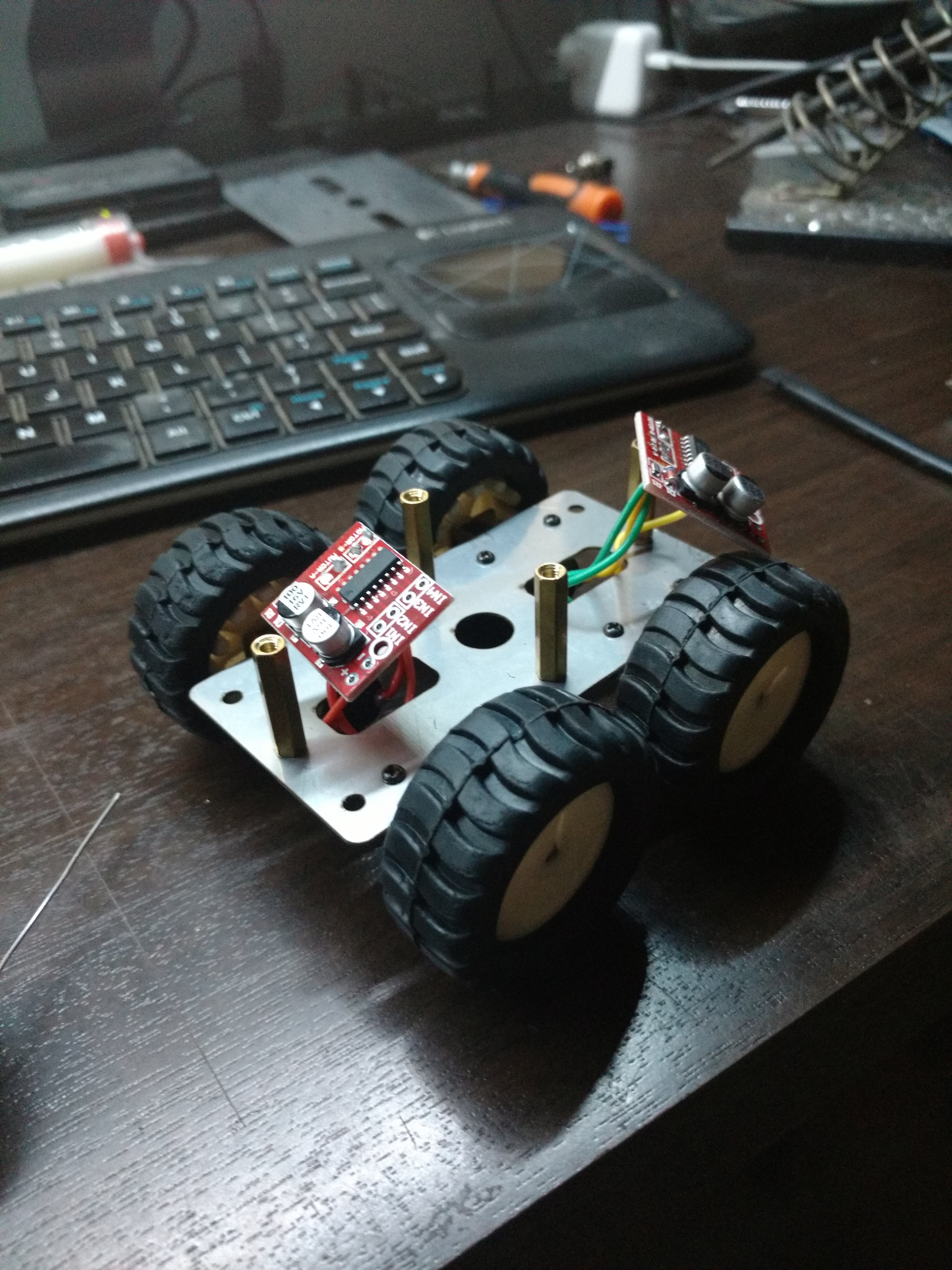

Assembling the chasis. Although i did not end up using these two motor drivers

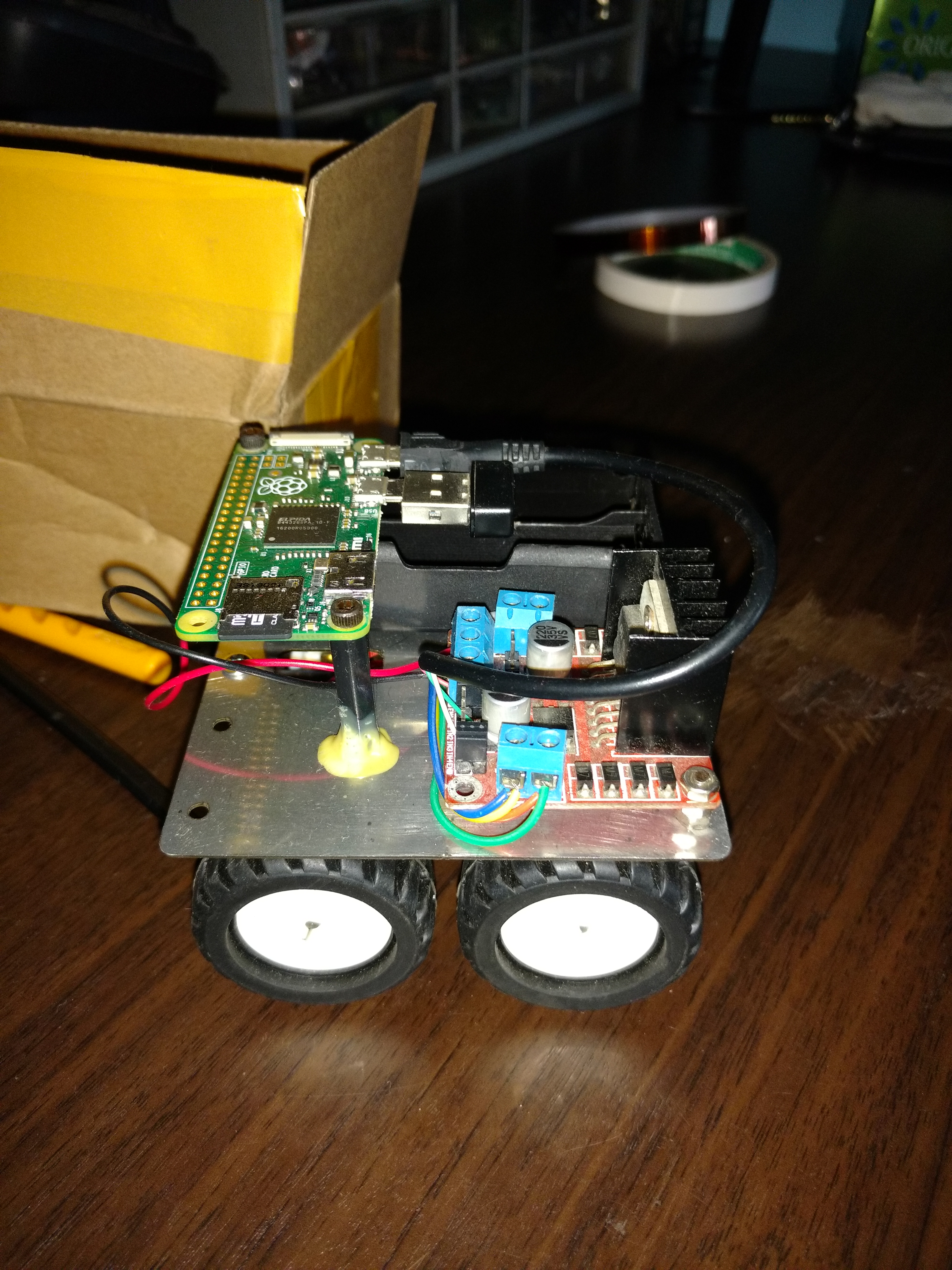

Almost Done

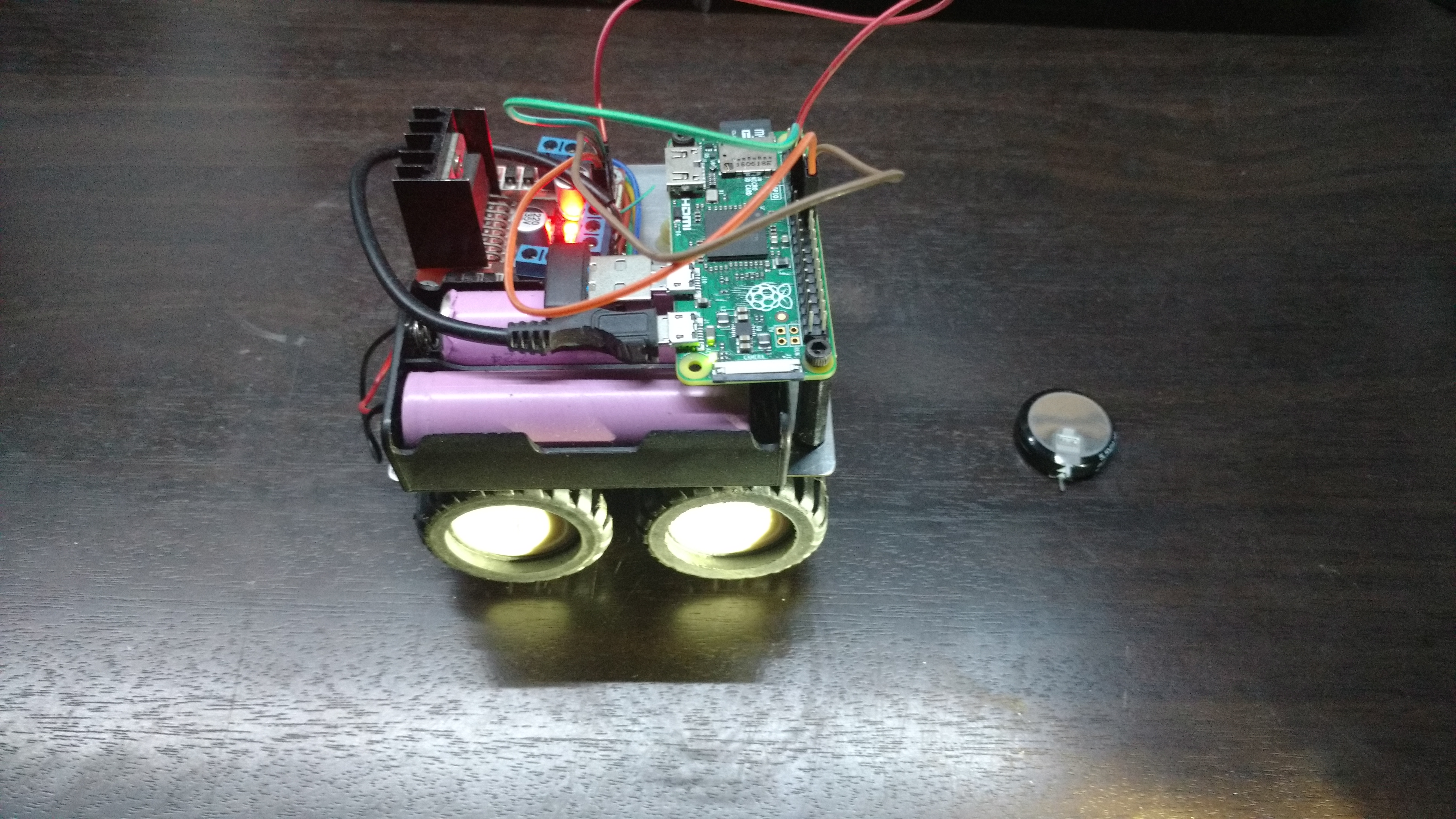

2 x 18650 cells with battery holder installed
Once you login to your Rpi0 via SSH clone the below code and run it in the terminal
#!/usr/bin/python3
import curses
from curses import wrapper
from gpiozero import LED
from time import sleep
motor1F = LED(23) # pin 16 on rpi0
motor2F = LED(24) # pin 18
motor1R = LED(27) # pin 13
motor2R = LED(17) # pin 11
def Forward():
motor1F.on()
motor2R.on()
sleep(0.1)
motor1F.off()
motor2R.off()
sleep(0)
def Back():
motor2F.on()
motor1R.on()
sleep(0.1)
motor2F.off()
motor1R.off()
sleep(0)
def Clockwise():
motor1F.on()
motor1R.on()
sleep(0.1)
motor1F.off()
motor1R.off()
sleep(0)
def Anticlockwise():
motor2F.on()
motor2R.on()
sleep(0.1)
motor2F.off()
motor2R.off()
sleep(0)
screen = curses.initscr()
curses.noecho()
curses.cbreak()
screen.keypad(True)
screen.addstr("Hello World!!!")
screen.addstr("PRESS THE ARROW KEYS TO MOVE THE CAR")
while True:
c = screen.getch()
if c == curses.KEY_LEFT:
screen.addstr(5,10, 'left key pressed')
Anticlockwise()
screen.refresh()
elif c == curses.KEY_RIGHT:
screen.addstr(5,50, 'right key pressed')
Clockwise()
screen.refresh()
elif c == curses.KEY_UP:
screen.addstr(2,30,'UP key pressed')
Forward()
screen.refresh()
elif c == curses.KEY_DOWN:
screen.addstr(9,30,'Down key pressed')
Back()
screen.refresh()
curses.nobreak()
screen.keypad(False) # Enable keypad Mode
curses.echo()
curses.endwin()
